JL1 is the RPO code for an integrated trailer brake controller — the factory-fitted controller with its gain knob and manual lever built into the dash, wired into the truck’s own brake and stability systems rather than spliced in under it.
It is a short-history code. Every GM-sourced record we hold is T1XX, 2021 through 2026. We also hold unverified 2019 entries for T1XX and K2XX, which suggests JL1 appeared a little earlier than our sourced records show — but we will not date a code from an unverified row.
Where JL1 is documented
| Year | How GM described it | Source |
|---|---|---|
| 2021 | “Trailer brake controller — integrated” | GM Upfitter special-service specification guides |
| 2022 | “Trailer brake controller — integrated, requires (Z82) trailering package” | GM Upfitter specification guides |
| 2025–2026 | “Trailer brake controller, integrated” | GM Fleet order guides; GM Canada eOGLD |
Twenty-eight GM-sourced records. The 2022 dependency is the useful detail: GM’s own documentation states JL1 requires Z82. If a label carries JL1, it should carry Z82 too.
Factory versus aftermarket, honestly
An aftermarket controller works. Plenty of people tow safely with one for years. But the two are not equivalent, and the difference is in what the controller knows.
| JL1 integrated | Aftermarket | |
|---|---|---|
| Input | Reads the truck’s brake pressure and stability data directly | Inertial pendulum or accelerometer, plus a brake signal wire |
| Display | In the driver information centre, with gain and diagnostics | Its own box, wherever you mounted it |
| Trailer sway interaction | Coordinated with the truck’s stability control | Independent of it |
| Wiring | Factory harness and connector | Tapped into brake, power and ground |
| Retrofittable | On a truck already wired for it, sometimes. Otherwise no | Yes, on anything |
How to tell what your truck has

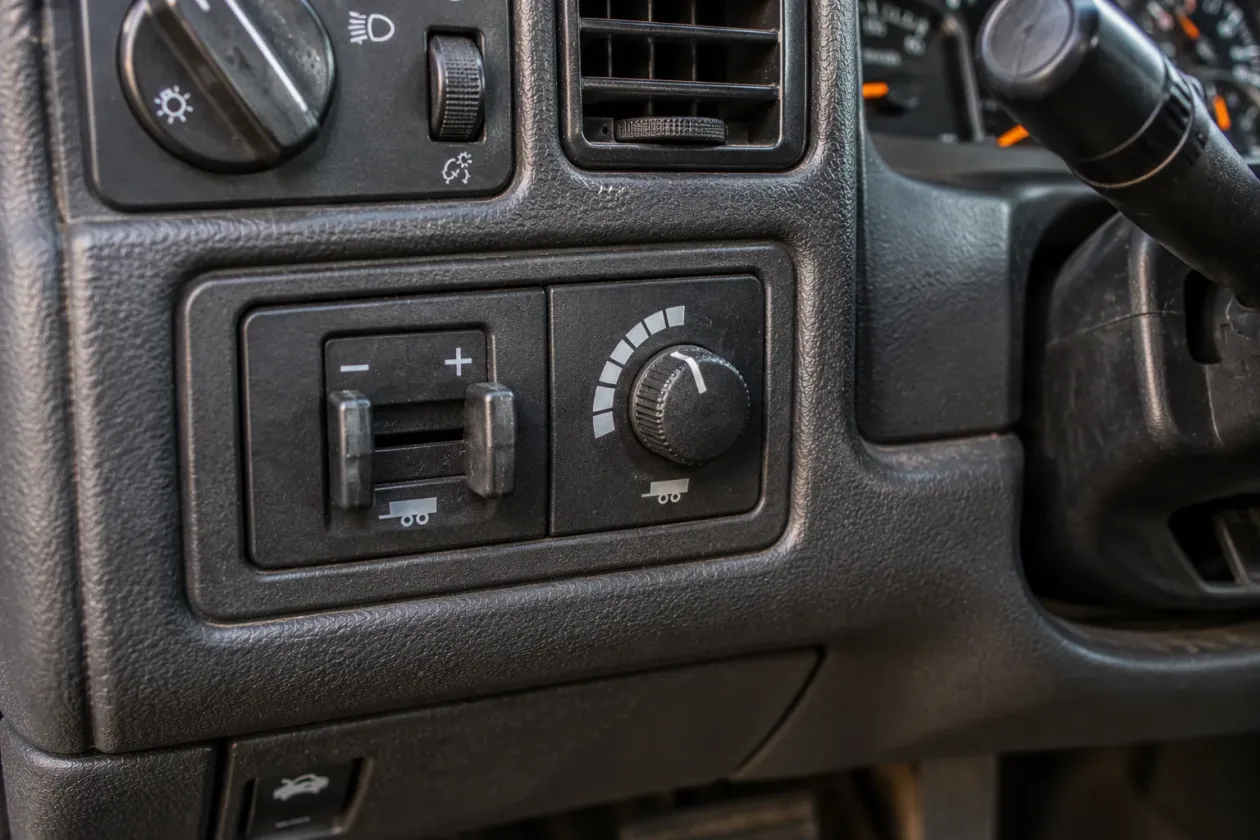

- Look at the dash left of the steering column. A factory controller is a flush panel with a gain adjustment and a sliding manual-apply lever, not a hanging box.
- Decode JL1 for your model year, and check for Z82 on the same label.
- Check the driver information centre menus. A truck with JL1 has a trailering menu with gain and trailer-brake readouts. A truck with an aftermarket controller does not.
If you are adding a controller to an older truck
We hold no GM-sourced JL1 record for GMT800, GMT900 or K2XX, and on those platforms an aftermarket controller is the normal answer. The wiring, the mirror question and what the factory harness already gives you are covered in the GMT800 tow package retrofit.
What JL1 does not tell you
- It is not a tow rating. Rating comes from the whole configuration — see NHT.
- It is not the hitch or the wiring. Those are Z82, which JL1 requires.
- It does not mean the controller is set up. Gain has to be adjusted for each trailer and load. A controller left at the factory default is a controller doing the wrong thing.
Sources
- 2021–2022 GM Upfitter special-service and police package specification guides
- 2025–2026 GM Fleet order guides; GM Canada eOGLD order guide
